Anesthesia Screen Frames and Stand


Drape Caddy® Photo #1

The Drape Caddy® Anesthesia Screen Stand

The Drape Caddy®
features cut-outs at the base of the frame
for securing anesthesia tubing, IV tubing or monitoring cables.


Drape Caddy® Photo #2

The Drape Caddy® Anesthesia Screen Stand in use.

Easily positioned for left or right access, this sterile drape
stand provides an unobstructed view of the patient.


The Drape Caddy®

  • The Drape Caddy® is an easy-to-use anesthesia screen frame/ stand.

  • It is designed to be used in the Cardiac Cath Lab, EP Lab, Interventional Radiology Labs, Nephrology Labs and Outpatient Surgery.

  • Built to provide safety and comfort for patients undergoing conscious sedation procedures.

  • The Drape Caddy® can be used for PPM, AICD, Central Venous Catheter (CVC) and PICC line insertion.

  • Other procedures that benefit from the Drape Caddy® include: Transcatheter aortic valve replacement (TAVR), antegrade femoral access for peripheral vascular intervention, hemodialysis catheter insertion, and Arteriovenous fistula (AVF) creation and revision.

  • Mold injected ABS design provides superior durability, high impact resistance and electrical insulation properties.

  • Features cut-outs at the base of the frame for securing anesthesia tubing, IV tubing or monitoring cables.

  • Simply slide the base under the patient's pillow or headrest. Clamps are not required to secure the frame to the table.

  • Eliminates the need for using I.V. poles for securing the sterile drapes in place.

  • It also provides enhanced sterile integrity and a more comfortable experience for the patient during the procedure.

  • Three drape clips are included for securing the sterile drape to the frame.

  • This is a lightweight plastic alternative to traditional alloy-based anesthesia screens.

  • Outer frame dimensions are 9" long x 24½" wide x 17½" high.

  • ISO 13485-2003 certified. Manufactured in the USA. Patent D591,992S.

  • Hundreds have been sold across the U.S. with lots of support from physicians.

Updated 2/24


DC-1955
The
Drape Caddy®
Anesthesia Screen
with 3 drape clips:


Normally:
$450

Your cost:
$395

_________

Drape Clip

WC-1955

Additional
Drape Clips, 5½"
wide, White color:

(Minimum order
is 10 clips)


Your cost:

$4.95 ea.

___________

Partial
Customer List:


Mount Sinai
Hospital,
Chicago, IL

Glendale Adventist Medical Center, Glendale, CA

Aventura Medical Center,
Aventura, FL

Saint Clare's
Hospital,
Weston, WI

Flagstaff Medical Center,
Flagstaff, AZ

Ochsner Health System,
New Orleans, LA

Scripps Memorial Hospital,
Encinatas, CA

St. Rose Dominican Hospitals,
Las
Vegas, NV

Warranty:

One year on
materials and workmanship.

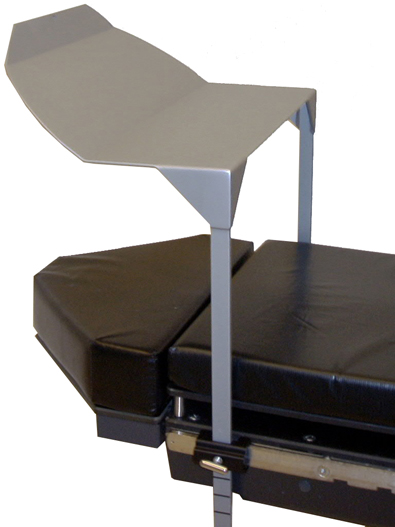

Head Butler Anesthesia Screen



Head Butler
Anesthesia Screen

  • Innovative design provides an elevated, flat surface for placing instruments while providing full view of the patient and access to breathing apparatus.

  • The Head Butler fits all standard operating room tables, mounting with side rail sockets (not included).

  • Designed to work well with robotic arms.

  • Easy to clean, no moving parts to maintain.

  • Hangs on a wall for storage.

  • Available in sizes to fit wider operating room tables.

  • Powder-coated aluminum.

  • Use SW-40-162 Side Rail Sockets or compatible clamps.

Updated 2/24



SW-15-
MHP-HB

Head Butler
Anesthesia
Screen Frame:


Your cost:
$595

*Clamps/ sockets
are sold separately.

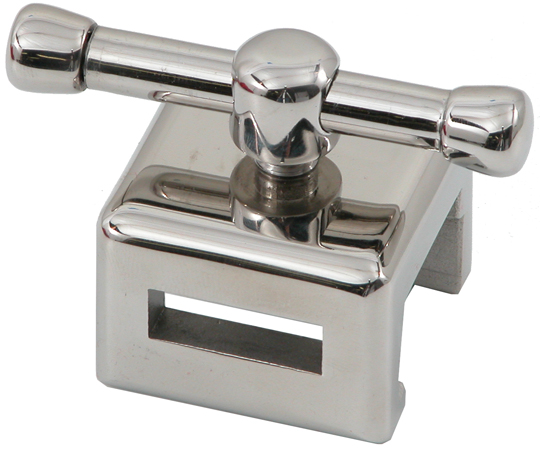

SW-40-162

Stainless Steel
Side Rail Socket

(Two are required)

Normally: $115 ea.

Your cost: $94 ea.


Click to enlarge

Head_Butler_2


This customized Head Butler #2 Anesthesia
Screen Frame has the same dimensions
as the above Head Butler except
with a slightly different design.


The placement of the vertical supports
on this model may provide you with
a more functional Anesthesia
Screen Frame design for
your particular needs.


Customized Head Butler
Anesthesia Screen Frame

  • Innovative design provides an elevated, flat surface for placing instruments while providing full view of the patient and access to breathing apparatus.

  • The Head Butler fits all standard operating room tables, mounting with side rail sockets (not included).

  • Designed to work well with robotic arms.

  • Easy to clean, no moving parts to maintain.

  • Hangs on a wall for storage.

  • Available in sizes to fit wider operating room tables.

  • Powder-coated aluminum.

  • Use SW-40-162 Side Rail Sockets or compatible clamps.


SW-15-
MHP-HB-2

Head Butler
#2 Anesthesia
Screen Frame:


Your cost:
$795

*Clamps/ sockets
are sold separately.


Delivery: Approx.
4 - 6 weeks.


SW-40-162

Stainless Steel
Side Rail Socket

(Two are required)

Normally: $115 ea.

Your cost: $94 ea.

Head Butler 2
Click to enlarge


Adjustable Anesthesia Ether Screen Frame


Adjustable
Anesthesia
Ether/ Screen Frame

  • This surgical table anesthesia/ ether screen frame features stainless steel construction.

  • 5/8" diameter post fits into clark socket. (sold separately)

  • Precision clamp allows for minor adjustment.

  • Adjusts vertically from 16" to 26".

  • Rotates horizontally for convenient patient access.

Updated 2/24
SW-40-101
Adjustable
Anesth. Screen

Normally: $165
Your cost: $140

__________

SW-40-160
Stainless Steel
Clark Socket

Normally: $198
Your cost: $125

Quantity discount
price: 6 or more,
Your cost: $110
ea.
Stainless Steel Clark Socket

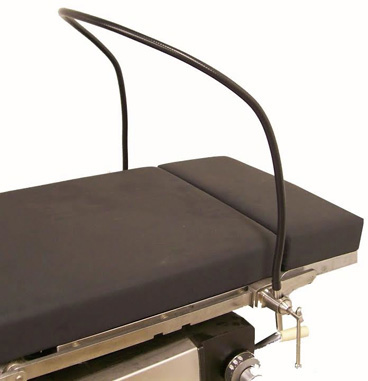

Malleable Anesthesia/



Malleable Anesthesia/
Ether Screen Frame

  • Sturdy yet flexible

  • Easily moldable

  • Infinite positions

  • 60" overall length

  • 5/8" diameter post fits into clark socket. (sold separately)

  • Coated steel tubing

  • Also used to run tubing and lines above the patient


Updated 2/24
SW-30-200-NC
Malleable
Anesthesia
Screen Frame


Normally: $341
Your cost: $285

_____________
SW-40-160
Stainless Steel
Clark Socket
(Note: 2 clamps
are needed)


Normally: $198
Your cost: $125


Quantity discount
price: 6 or more,
Your cost: $110
ea.

Stainless Steel Clark Socket

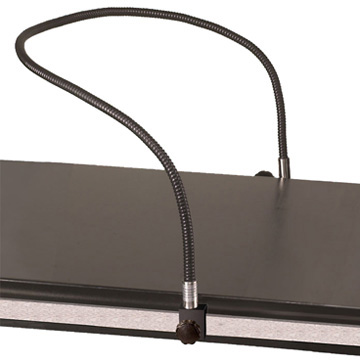

Malleable Anesthesia/


Malleable Anesthesia/
Ether Screen Frame

w/ Integral Side Rail Clamps

  • Malleable anesthesia screen frame molds and shapes easily for O.R., emergency and cardiac procedures.

  • Sturdy yet flexible 60" stainless steel bar is coated with blue plastic to allow for infinite drape positioning.

  • Side rail clamps are included.

  • Turn knob to secure to side rail.

Updated 2/24

SW-30-200
Malleable
Anesth. Screen
Frame w/ clamps


Normally: $450

Your cost: $340

Drape Clip

WC-1955

Drape Clips, 5½"
wide, White color:

(Minimum order
is 10 clips)

Your cost:

$4.95 ea.

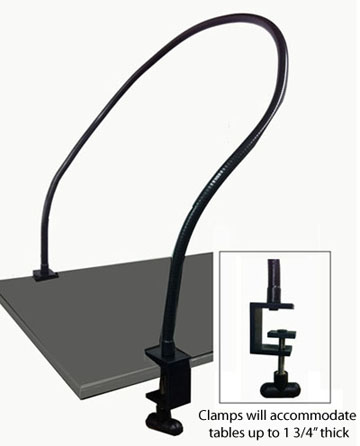

Malleable Anesthesia Ether Screen Frame


Malleable Anesthesia/
Ether Screen Frame

with Integral Table Clamps

  • One piece malleable anesthesia screen frame molds and shapes easily for surgery, emergency and cardiac cath procedures.

  • Allows tubes and lines to be run over the patient without interference.

  • Great for imaging tables that do not have accessory rails for mounting accessories.

  • Sturdy yet flexible 60" steel bar coated in Black urethane allows infinite drape positioning.

  • Unit mounts firmly to imaging surface with integral clamps. The depth of the opening of the clamp is 1 5/8”.

  • The size of the bottom of the screw plate is 1” x 1 3/8”. If the bevel on your table is more than 5/8” wide, then this clamp will not be compatible.

  • Turn knob to tighten onto underside of table. Clamps will accommodate tables up to 1¾" thick.

Updated 2/24




SW-30-202

Malleable
Anesthesia
Screen Frame
with Clamps

Normally: $425

Your cost: $368
____________


Drape Clip

WC-1955

Drape Clips, 5½"
wide, White color:

(Minimum order
is 10 clips)


Your cost:

$4.95 ea.
Please note: All prices quoted are FOB Factory. Freight is pre-paid and added to invoice.
Any returns are subject to manufacturer's restocking charge. Customer is responsible for
return freight. No credit is given on inbound freight cost. Terms & conditions


Updated 2/24

Average delivery time is 1 to 2 weeks.

Warranty: One year on materials and workmanship.
