Shoulder Arthroscopy Beach Chair & Positioners

Simply push the up or down button -
on the hand-held pendant to raise and
lower this Beach Chair Attachment.

Surgeons can adjust the angle themselves -
which adds to the convenience and ease of use.

click to enlarge

Demonstration Video

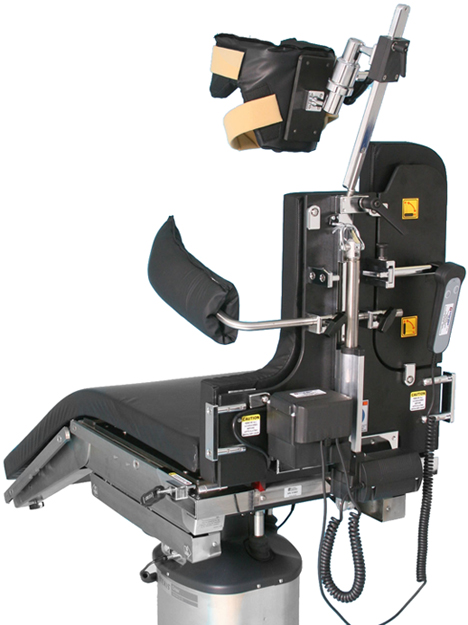

Shoulder Arthroscopy
Beach Chair Attachment -

Featuring easy set-up and operation

Motion control technology eliminates manual positioning completely with a simple push button
hand control.
Accommmodates patients up to 500 lbs., subject to O.R. table limitations.
Integrated mounting clamps adjust easily so it will attach to any width operating room table.
Double-ball joint head system safely secures patient's head.
Headrest tilts 30° in every direction - forward, backwards and and side-to-side.
Headrest also slides verically and then locks tight.
This Shoulder Arthroscopy Beach Chair adjusts from 0° - 90° in 8 seconds in a slow controlled movement.
2" Softcare pad set for patient comfort. Matches the height of your 2" O.R. table pad.
Lateral brace is included to secure patient's operative side.
Optional multi-axis arm positioner secures patient's non-operative arm.
Optional transport dolly ensures easy transport and storage.

Note: If you wish to purchase this product and require an in-service, then please call the
factory at 1 888 724-8763 for sales & service.

SW-80-0004

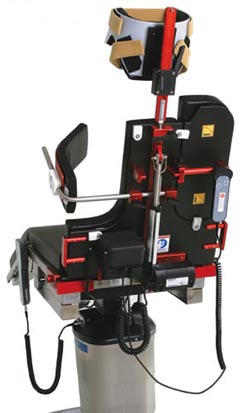

Linear Motion Shoulder Arthroscopy Chair:
Your cost: $5,494

SW-80-0134
Schure Socket XL
Your cost: $299.95 ea.

SW-80-0050
Multi-Axis Arm
Positioner w/ pad
Your cost: $594 ea.

SW-80-0039
Head & Chin
Strap, 12/ case
Your cost: $179/ cs.

SW-80-0074
Stainless Steel
Transport Dolly
Your cost: $564 ea.

Transport Dolly shown above with Shoulder/ Beach Chair Attachment & accessories.

click to enlarge

Please see important product availability
information to the right before calling us.

Shoulder Assistant Limb Positioner
Used in conjuction with a Shoulder/ Beach Chair

This arm positioning device combines strength and adaptability to provide optimal intraoperative position for upper extremity procedures.
Staff efficiency is improved as the assistant are freed from holding the limb during surgery.
Designed to maintain a low profile position while delivering exceptional control and positioning capabilities.
Mounts onto the side of any standard operating table and provides a non-sterile base for which sterile components are inserted.
The upper extremity positioner and control tube are steam autoclavable to provide the sterile environment needed for upper extremity surgery.
Note: If you wish to purchase this product and require an in-service, then please call the factory at 1 888 724-8763 for sales and service.

SW-80-0088
Shoulder Assistant
Limb Positioner:

Your cost: $3,995

SW-80-0113
Shoulder Assistant
Sterile Disposable Hand Forearm Wrap, 12/ case:

Your cost: $499/ case

SW-80-0140
Stainless Steel
Transport Dolly:

Your cost: $564

Note: Shoulder Arthroscopy Beach Chair is sold separately.

All prices quoted are FOB Factory. Freight is pre-paid and added to invoice. Prices subject to change without notice. Terms & conditions

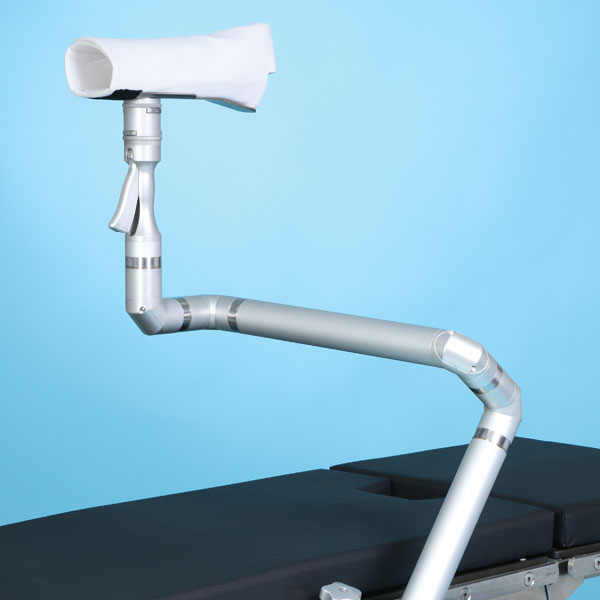

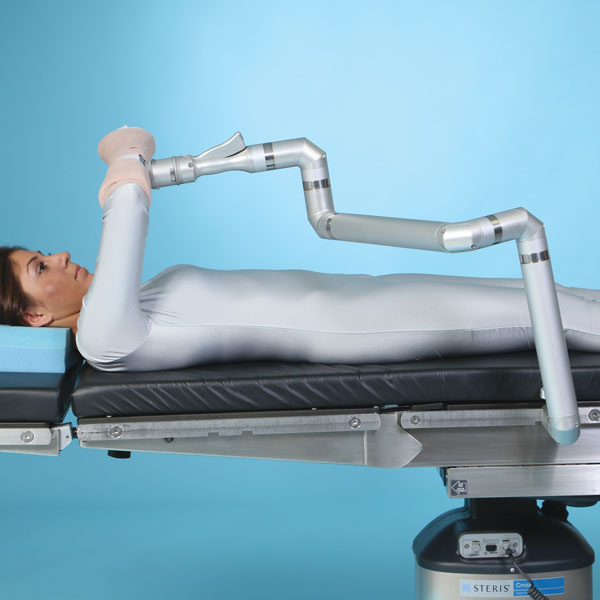

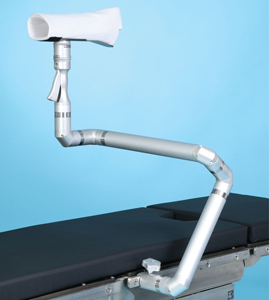

Schure Loc™ XPS Arm / Shoulder Positioner

Increase operating room performance and productivity with the new SchureMed Schure Loc™ XPS Arm and Shoulder Positioner.
This positioner doesn't require foot pedals, hoses, hydraulics or power cords around the operating room table. It combines strength and flexibility when intra-operatively adjusting the operative limb.
This Schure Loc™ XPS maintains steady positioning from start-to-finish so the entire surgical team can focus on the open or arthroscopic limb procedure
There's no need to have the surgical aid hold the patient’s limb during the procedure!

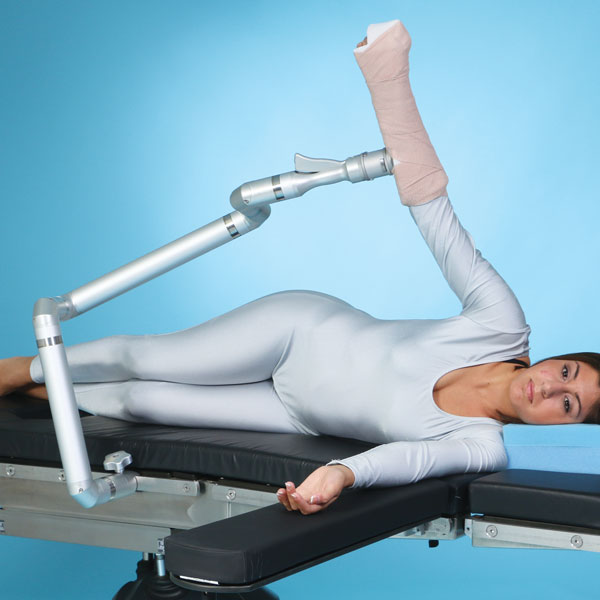

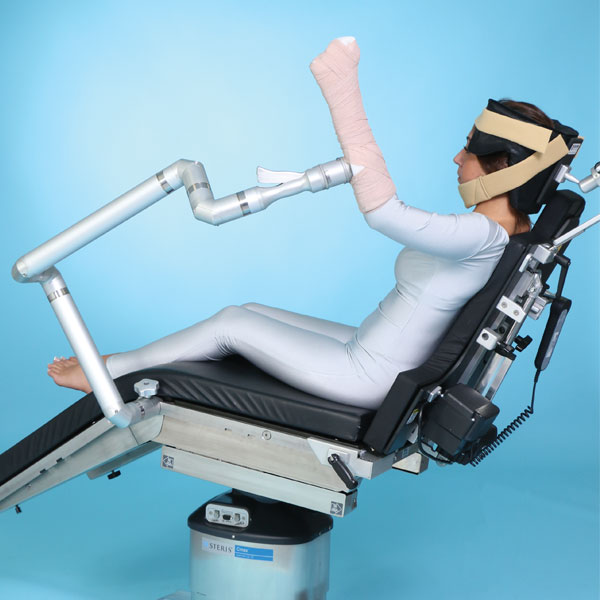

Great for beach chair or lateral position and coming soon – Schure Loc™ XPS for elbow, wrist, knee or ankle surgery.
Single release lever releases all joints – locking in place when released
Easily attaches to any OR table – ready for immediate use
Smooth, effortless positioning enhances operative site exposure
Decreases surgeon fatigue and improves OR team productivity
Convenient Schure Loc™ Shoulder Kit includes a sterile drape and foam hand/ forearm holder and self-adherent wrap
Note: You can purchase this easy-to-use product immediately from us with a 30 day guaranteed satisfaction policy. Or if you want to purchase it and require a personal in-service, then please call the factory at 1 888 724-8763

New
Product
Introduction
for 2015

SW-80-0280
Schure Loc™ XPS
Arm/ Shoulder
Positioner

SW-80-0281
Disposable Schure
Loc™ XPS Sterile Kit:
Includes Sterile Forearm
Wrap, Sterile Self-
Adherant Coban™ and
Sterile Drape, 10/ case

CALL
1 888 424-1740
FOR A QUOTATION

Head and Chin Strap

Used with above Shoulder/ Beach Chair.
Straps are secured to headrest with Velcro.
Chin strap includes a padded cup to help secure the patient's head.

SW-80-0039
Head & Chin
Strap, 12/ case:

Your cost: $179/ cs.

All prices quoted are FOB Factory. Freight is pre-paid and added to invoice. Prices subject to change without notice. Terms & conditions

Disposable Face Mask

Used with above Shoulder/ Beach Chair.
Disposable face mask securely holds patient's head during the operative procedure without interfering with or compromising patient's airway.
Easily attaches to head frame with soft Velcro straps.

SW-80-0164
Disposable Face
Mask, 12/ case:

Your cost: $234/ cs.

All prices quoted are FOB Factory. Freight is pre-paid and added to invoice. Prices subject to change without notice. Terms & conditions

Please note: All prices quoted are FOB Factory. Freight is pre-paid and added to invoice. Any returns
are subject to manufacturer's restocking charge. Customer is responsible for return freight. No credit
is given on inbound freight cost. Prices are subject to change without notice. Terms & conditions

Copyright 2005 - 2015, SW Med-Source Inc., All Rights Reserved.

Average delivery time is 1 to 3 weeks.

Updated 8/15
