Surgery Table Clamps/ Imaging Table Clamps/ Sockets


Stainless Steel Clark Socket
Schure Socket XL SpringLoc Clamp

Blade Style Side Rail Clamp
Stainless Steel Clark Socket

Schure Socket XL

SpringLoc Clamp

Simple Clamp

Blade Style Rail Clamp
Stainless Steel Side Rail Clamp Universal Rail Clamp Imaging Table Clamp CamLoc Clamp
S. S. Side Rail Clamp Siderail Clamp w/ Extender Rail Universal Rail Clamp Imaging Table Clamp CamLoc Clamp

                     See complete table clamp/ socket selection below.

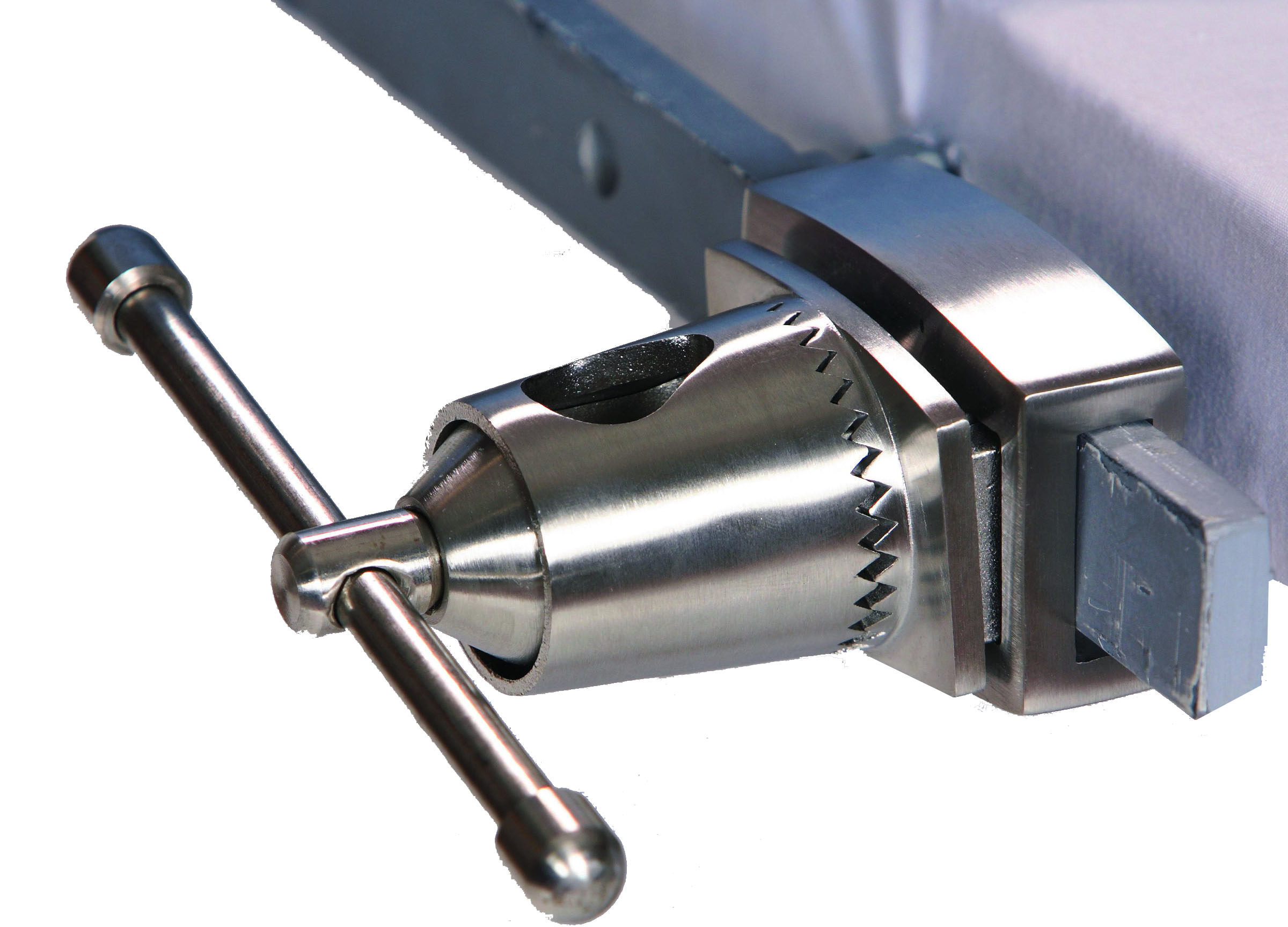

Clark Socket

click to enlarge

Precision locking teeth designed for long life.

Stainless Steel Clark Socket
  • This surgical table clamp features durable stainless steel construction.

  • It includes precision locking teeth designed for long life.

  • Compatible with all U.S. made operating room table rails. Standard U.S. table rails measure 1 1/8" x 3/8".

  • Accepts round posts up to 11/16" diameter.

  • Total weight: 2 lbs.
Updated 1/23

SW-40-160

Stainless Steel
Clark Socket


Normally: $198 ea.

Your cost: $125 ea.


SW-40-160-QTY
S.S. Clark Socket,
Quantity discount
price for 4 or more:


Your cost: $120 ea.

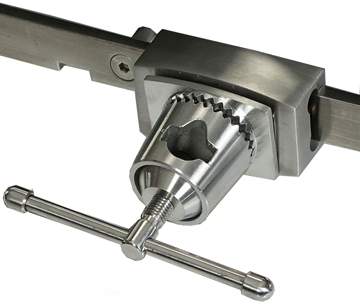

Stainless Steel Elite Clark Socket

click to enlarge

Stainless Steel Elite Clark Socket
  • Snaps on anywhere on the O.R. Table Rail.

  • Accepts Round posts up to 3/4" diameter and flat bars.

  • Two clamps in one.

  • All #304 Stainless Steel construction.
Updated 1/23

SW-40-159

Stainless Steel
Elite Clark Socket


Normally: $230 ea.

Your cost: $160 ea.


SW-40-159-QTY
S.S. Elite Clark Socket,
Quantity discount
price for 4 or more:


Your cost: $149 ea.





The newest design in
surgical table clamps!

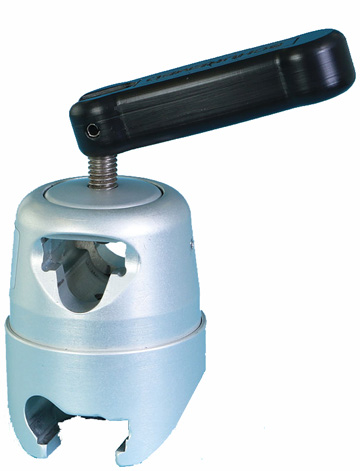

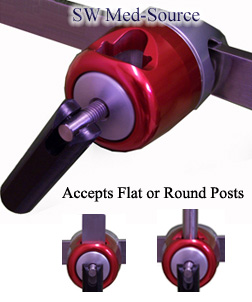

Schure Socket XL

click to enlarge

(800 lb. patient weight capacity)


It's like having two clamps in one!


It just snaps into place at any
point along the table side rail.


Schure Socket
XL

  • This spring-loaded autoclavable surgical table clamp conveniently attaches to any place along the table rail. It just snaps into place.

  • Removal is just as easy. Just lift and remove.

  • Attaching the clamp to any place along the side rail means you won't have to attach the clamp to the side rail notches.

  • No longer will you have to slide it along the rail into the desired position.

  • Neither will you need to remove the patient safety strap in order to place the clamp into the desired position! This improves O.R. safety and saves valuable patient set-up time.

  • Since this clamp accepts both flat 1" x 3/8" blade or 5/8" round mounting posts, it's more useful and cost effective than other clamps. No longer do you need to search around for the right type of clamp.

  • This unique table clamp with a swivel design allows for positioning of your accessories in the vertical or horizontal position or anywhere in between.

  • The hardened clamping surface creates maximum pressure - preventing movement of all accessories.

  • It locks accessories securely with a quick turn of the durable ergonomic handle.
Updated 1/19

SW-80-0134
Schure Socket XL
(for U.S. table rails)

Your cost: $250 ea.

 It's like having 2 clamps
in one - accepts both
flat blade and round
mounting posts.

And it attaches
anywhere along
the table side rail.

__________________

SW-80-0200

Schure Socket XL
(for U.K. table rails)
Your cost: $250 ea.

_________________

SW-80-0201
Schure Socket XL
for Denyer table rails
(Australian)
Your cost: $250 ea.

________________

SW-80-0244

Schure Socket XL
(for European table rails)
Your cost: $250 ea.




click to enlarge

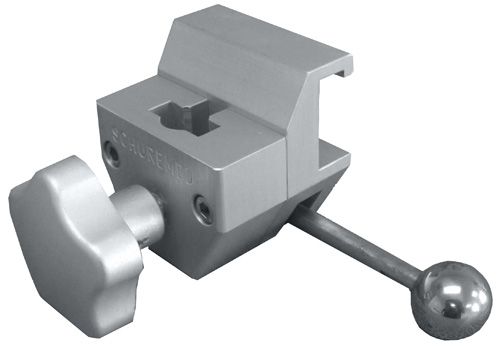

CamLoc Clamp

  • The CamLoc Clamp is fully autoclavable and is designed for use in the sterile field

  • It can attach to the rail at any location over multiple drapes.

  • It accepts accessories with round posts up to 5/8" diameter and flat posts 1" x 3/8".

  • Patient weight capacity is 800 lbs.
Updated 1/19

SW-80-0271

CamLoc Clamp
(for U.S. table rails)

Your cost: $325 ea.

 It's like having 2 clamps
in one - accepts both
flat blade and round
mounting posts.

And it attaches
anywhere along
the table side rail.

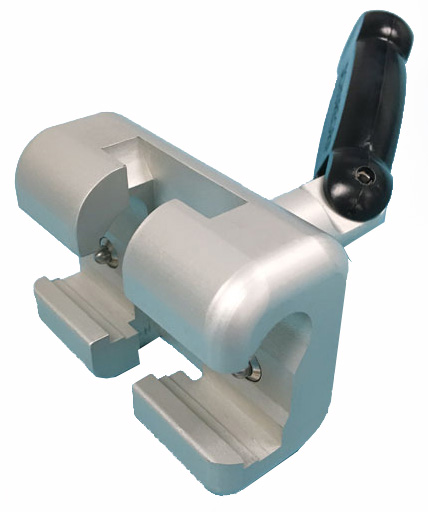

SpringLoc Clamp

click to enlarge

SpringLoc Clamp
  • Quick and easy pull-to-release lever.

  • Securely locks accessories with a flat 1" x 1/4" mounting post.

  • Attaches at any place along the side rail.

  • Eliminates the need to attach the clamp to the side rail notches. Thus you will not have to slide it along the rail into the desired position.
  • Patient weight capacity is 800 lbs.
Updated 1/19


SW-80-0338

SpringLoc
(Great White)
Stirrup Clamp

(for U.S. table rails)

Your cost: $199 ea.

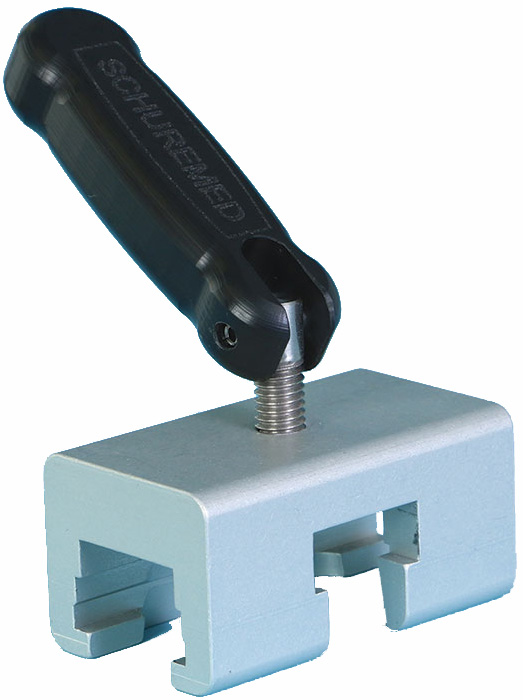

Simple Clamp

click to enlarge


Simple Clamp

  • Attaches at O.R. table rail ends or notches.

  • Allows accessories to be mounted vertically or horizontally.

  • Securely locks accessories with a flat 1" x 3/8" mounting blades anywhere along the table side rail.
  • Patient weight capacity is 720 lbs.




Updated 1/19


SW-80-0228

SpringLoc
Great White
Stirrup Clamp

(for U.S. table rails)

Your cost: $88 ea.





click to enlarge

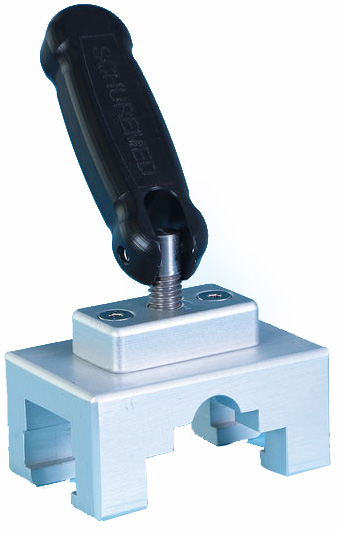

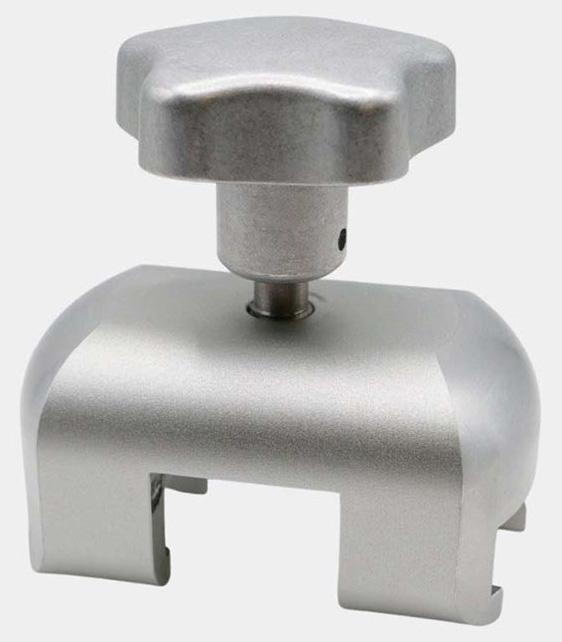

Deluxe Rail Clamp

  • The Deluxe Rail Clamp is designed for a wide-range of purposes; affixing most operating room table accessories to most OR table designs and brands.

  • Attaches at OR table rail ends or notches

  • Accessories can be mounted either vertically or horizontally

  • Patient weight capacity is 500 lbs (227 kg)



Updated 1/19



SW-80-0248
Deluxe Clamp
(for U.S. table rails)

Your cost: $99 ea.

It's like having 2 clamps
in one - accepts both
flat blade and round
mounting posts.

Attaches at O.R. table
rail ends or notches.


Blade Style Side Rail Clamp

click to enlarge


Designed for ¼" flat blade style accessories.


Blade Style Side Rail Clamp
  • This aluminum surgical table clamp is designed for use with 1" x ¼" flat blade style operating table accessories.

  • Attaches at rail ends or notches.

  • Perfect for table top extensions and knee board applications.

  • Reduces the free play associated with standard clamps.

Updated 1/23


SW-40-161

Side Rail Clamp
Your cost: $105 ea.

SW-40-161-QTY
Side Rail Clamp,
Quantity discount
price for 4 or more:

Your cost: $95 ea.

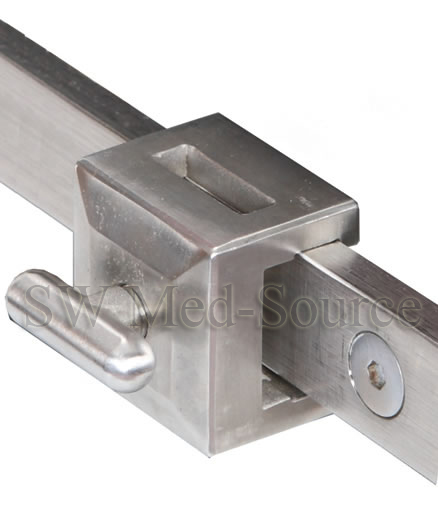

Stainless Steel Side Rail Clamp

click to enlarge

Stainless Steel Side Rail Clamp

  • Accepts standard flat blade style accessories that measure 1" x ¼".

  • Attaches at rail ends or notches.

  • Identical design to many clamps that come as a standard accessory with many new operating tables.

  • Durable stainless steel construction means durability and long life.

Updated 1/23

SW-40-162
Stainless Steel
Side Rail Socket


Your cost:
$105 ea.


SW-40-162-QTY
Side Rail Clamp
,
Quantity discount
price for 4 or more:


Your cost: $95 ea.

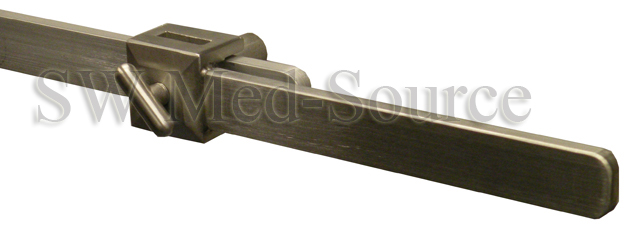

Side Rail Clamp with Extender Rail

click to enlarge

Save on case set-up time and provide
better patient positioning with this Side
Rail Clamp with 6" long Extender Rail.



*Note: Do not use this product if it causes
you to exceed your table manufacturer's recommendations on patient weight
distribution or if it places your
patient in an unsafe position.


Side Rail Clamp with Extender Rail

  • Bridge the gap between your table sections with this Side Rail Clamp with Extender Rail. Now you can place your accessories exactly where you want them to be.*

  • You can also extend the length of your table rails allowing you to place armboards in a better position for patients in a prone, lateral or supine position.*

  • The extender rails are especially helpful with armboard placement when prone positioned patients have been placed into a neuro surgical headrest.

  • This 6" long extender rail is welded to the side rail clamp. The clamp attaches at accessory rail ends or notches. Secures to rail with stainless steel turn handle.

  • The clamp itself will accept standard flat blade style accessories that measure 1" x ¼". Stainless steel construction means durability and long life.
Updated 1/23


SW-40-167
Stainless Steel
Side Rail Clamp
with Extender Rail


Your cost:
$149 ea.

(Note: It is recommended
that you purchase at
least two at a time)



SW-40-167-QTY
Stainless Steel
Side Rail Clamp
with Extender Rail


Quantity discount
price for 4 or more:


Your cost: $139 ea.

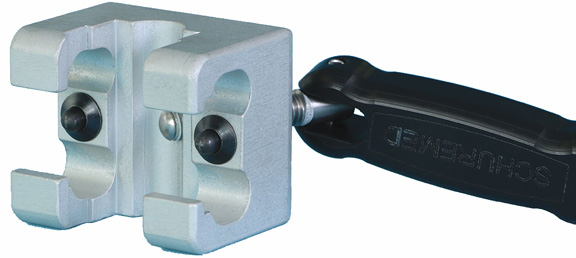

Universal Rail Clamp

click to enlarge



No longer made with Red finish. It is now
made with silver polished aluminum color.


Universal Rail Clamp
  • This spring-loaded table clamp conveniently attaches any place along the surgical table rail. Removal is just as easy.
  • It accepts both 5/8" round or 1" x 3/8" flat blade style mounting posts.  It's like having 2 clamps in 1.
  • Holds accessories in either the vertical or horizontal positions.
  • Locks securely with a simple twist of the ergonomic handle.
  • Patient weight capacity is 350 lbs.

Updated 1/19


SW-80-0085
Universal Rail Clamp


Your cost:
$115 ea.




Imaging Table Clamp

click to enlarge

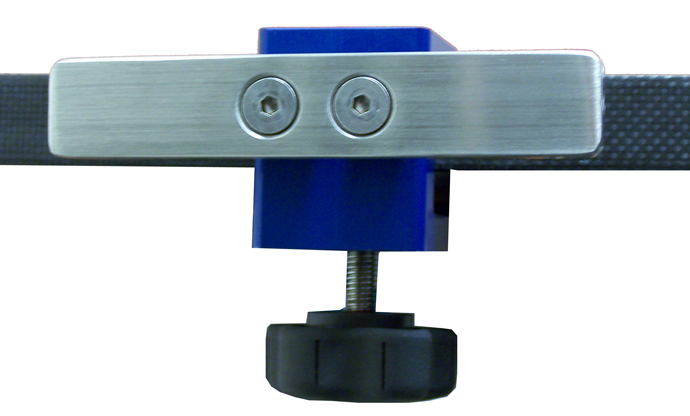

  Front View

Imaging Table Clamp

click to enlarge

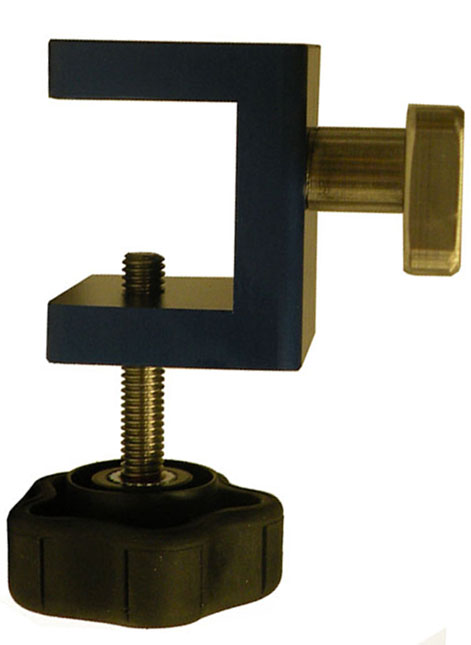

Side View

 Note: This squared-off clamp is only compatible
with squared-off table edges. It will not work
on tables with beveled or raised edges.


Imaging Table Clamp
with Accessory Rail
  • Quickly and easily attach this clamp with a rail to your imaging table making it more versatile for your accessory needs.

  • Features a clamp opening of 1½". So it is designed to be compatible with all types of imaging tables.

  • The Stainless Steel rail is 6” long x 1 1/8" high x 3/8" thick. It is the same type of rail used on all U.S. made surgery tables.

  • This rail is designed to be used with armboards, Clark sockets and other types of table clamps that are typically used on U.S. made surgery tables.

  • Once a clamp is securely attached to this rail, you can then insert a variety of table accessories such as leg and arm preppers.

  • Note: Do not exceed your table manufacturer's recommendations regarding patient weight distribution. Always insure that your patient is safely secured to the imaging table when using any table accessory.

  • This heavy-duty clamp is designed to attach to your imaging table without damaging your table top.

  • Note: This squared-off clamp will only work with squared-off table edges. It will not work on tables with a raised/ beveled edge.

  • Warranty: 1 year.
Updated 1/23



SW-40-168

Imaging Table
Clamp with Rail


Your cost:
$135 ea.
____________

SW-40-168-QTY

Imaging Table
Clamp with Rail


Quantity discount
price for 4 or more:


Your cost: $125 ea.
Please note: All prices quoted are FOB Factory. Freight is pre-paid and added to invoice.
Any returns are subject to manufacturer's restocking charge. Customer is responsible for
return freight. No credit is given on inbound freight cost. Terms & conditions


Copyright 2005 - 2023, SW Med-Source Inc., All Rights Reserved, Opt. 03/18.

Average delivery time is 1 to 2 weeks.

Updated 1/23
